Roland SPD-SX PRO Flagship Electronic Sampling Pad
The Flagship Sampling Sidekick
The Roland SPD-SX PRO is the ultimate sampling pad for professional drummers and musicians. Built on the legacy of the SPD-S and SPD-SX, this flagship model combines advanced sample technology with performance-ready features. A bright 4.3-inch color display, customizable RGB pad lighting, and flexible I/O options make it the most powerful Roland pad yet.
Key Features

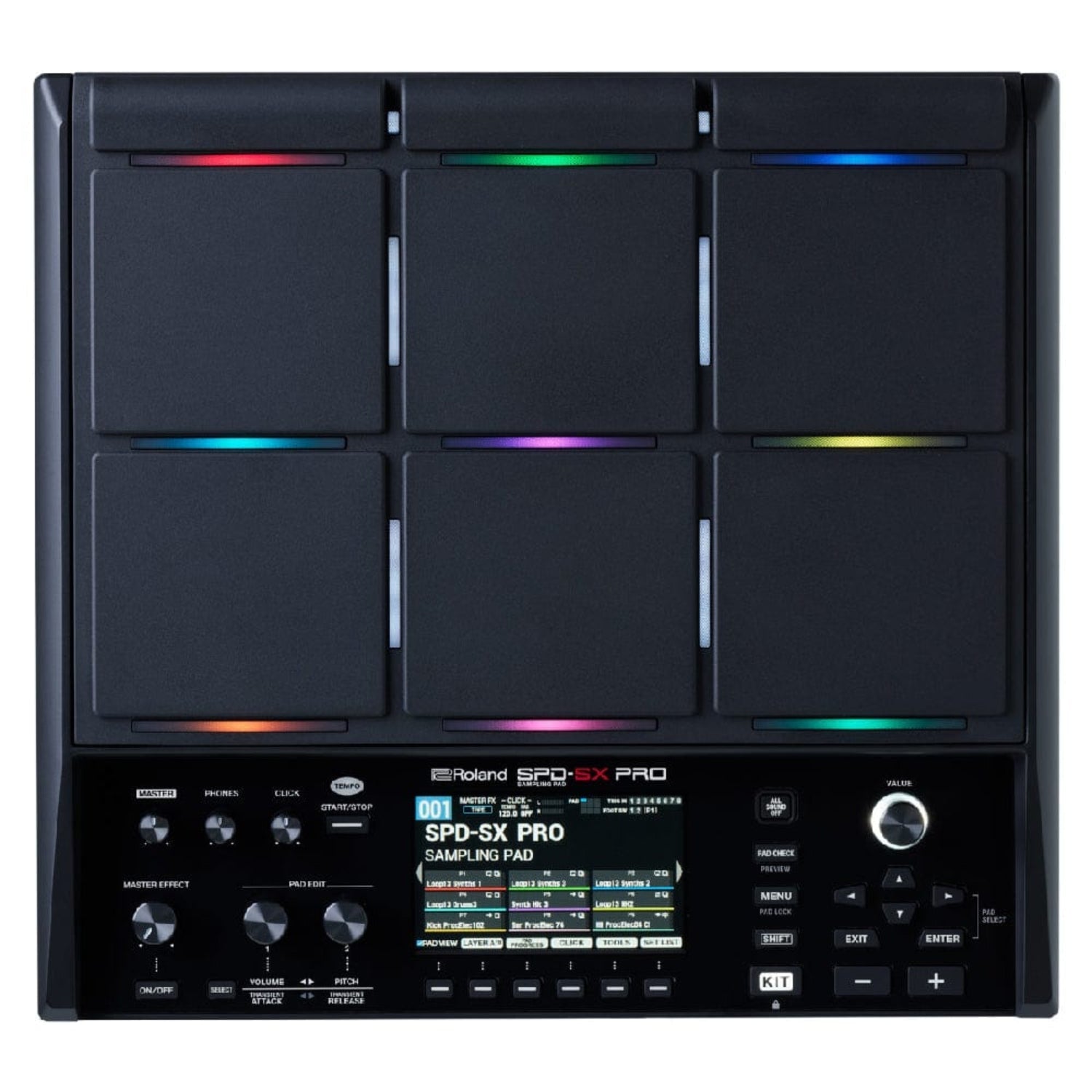

- 9 ultra-responsive pads with customizable multi-color LEDs
- 4.3" color LCD screen for real-time monitoring and quick navigation
- 32 GB internal storage (up to 44 hours of stereo audio)
- Over 1,550 preloaded samples and support for 200 kit patches
- Four direct mono outputs + stereo main outs + assignable headphones
- 8 trigger inputs, footswitch, and hi-hat controller support
- Dedicated SPD-SX PRO App for sample management and editing
Built for the Stage
Engineered for touring musicians, the SPD-SX PRO features a rugged build, enhanced crosstalk rejection, and precision trigger response. Whether you're on stage or in the studio, this pad is designed to perform.
Custom Lighting for Performance
RGB pad-dividing LEDs allow you to color-code kits, instruments, and zones. Stay visually organized during performances—even on dark stages.
Professional Sound Quality
Enjoy pristine playback with WAV, AIFF, and MP3 support. All imported files are automatically converted to 48 kHz/16-bit for consistent high-quality sound. Perfect for samples, backing tracks, loops, and live layering.

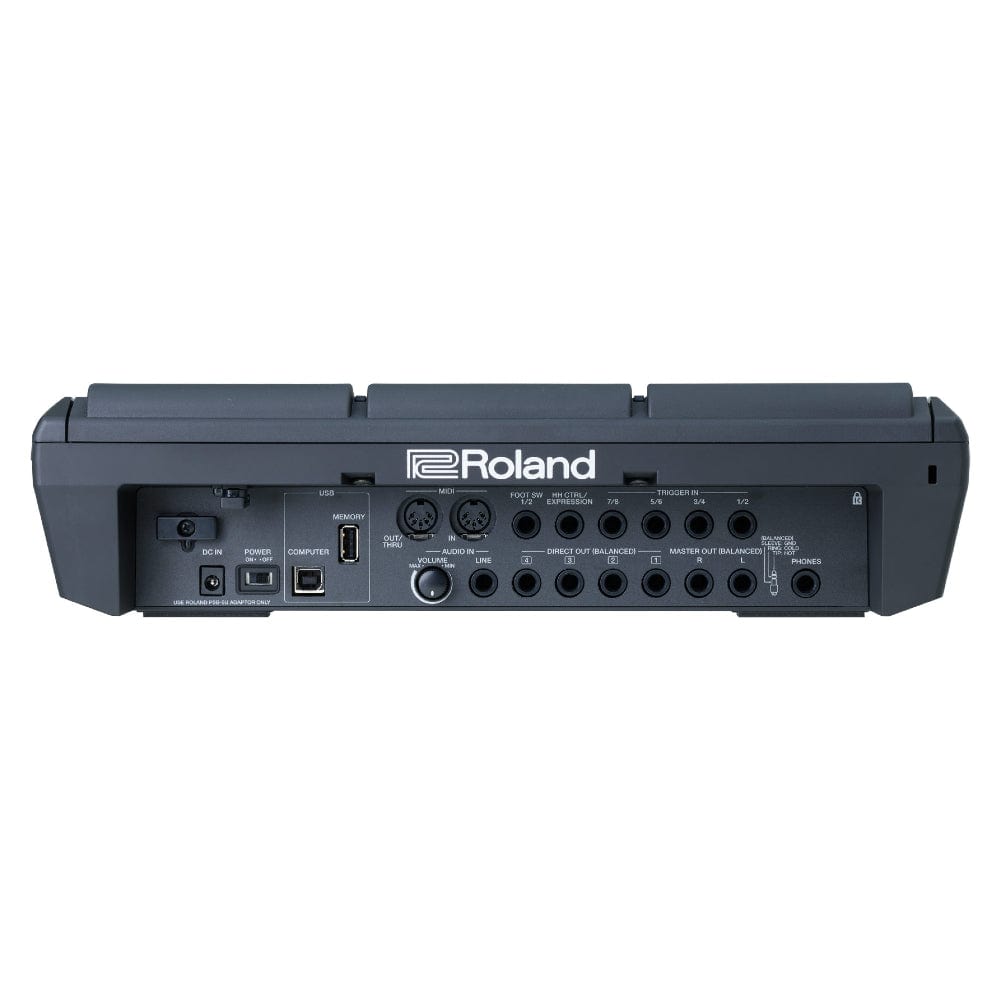

Advanced Connectivity
- Stereo master output (L/R) + 4 direct assignable mono outs
- Stereo headphone out (assignable)
- 8 external trigger inputs (via 4 TRS ports)
- Footswitch and hi-hat controller support
- USB Audio/MIDI interface for multichannel playback and recording
Layer and Customize Your Sounds
The A/B layering feature lets you assign two sounds per pad. Adjust individual pitch, volume, EQ, transient shaping, and switching behavior to craft dynamic and expressive kits.
Production Tools
Use up to four multi-effects simultaneously, apply master EQ and compression, and enable sidechain ducking for pro-level mixes. A 16-step pad sequencer and built-in metronome complete the performance toolkit.
Sample Management Made Easy
The dedicated SPD-SX PRO App lets you drag and drop samples, organize kits, and fine-tune settings from your computer—making setup faster and more intuitive than ever.
Technical Specifications
-
Pads: 9 built-in (6 main + 3 shoulder) with RGB LEDs
-
External Triggers: 4 TRS inputs (supports 8 triggers via Y cables)
-
Polyphony: 32 voices
-
Internal Memory: 32 GB (up to 44 hours stereo audio)
-
Preloaded Samples: 1,550+
-
Kits: 200
-
Wave Support: WAV, AIFF, MP3 (auto-converted to 48kHz/16-bit)
-
Effects: 53 Kit FX types (4 systems), 53 Master FX types
-
Sequencer: 16-step pad sequencer
-
USB Audio I/O: 8 channels record, 12 channels playback
-
Display: 4.3" full-color graphic LCD
-
Power: DC 12V (AC adapter), 1,500 mA
-
Size: 360 x 330.3 x 92.9 mm (14.2" x 13" x 3.7")
-
Weight: 3.0 kg (6 lbs 10 oz)
Included Accessories
- Quick Start Guide
- “Read Me First” Leaflet
- “Using the Unit Safely” Leaflet
- AC Adaptor
Optional Accessories (Sold Separately)
- Roland PD, PDX Pads, BT-1
- CY Series Cymbals
- VH-10, VH-11 Hi-Hat Controllers
- KD Series Kick Triggers
- Roland PDS-10 / PDS-20 Stands
- Expression & Foot Switches (EV-30, DP-2, FS-5U, FS-6, FS-7)
- Y-Cable (PCS-31L), USB Flash Memory
Why Choose the Roland SPD-SX PRO?
- Pro-level sampling pad with rugged durability
- Visually optimized with RGB lighting and large LCD
- Flexible connectivity and expansive sound options
- Easy-to-use desktop app for sample organization
Order the Roland SPD-SX PRO Today
Take your performance to the next level with the industry-leading Roland SPD-SX PRO Sampling Pad. Order yours today and experience the difference!
