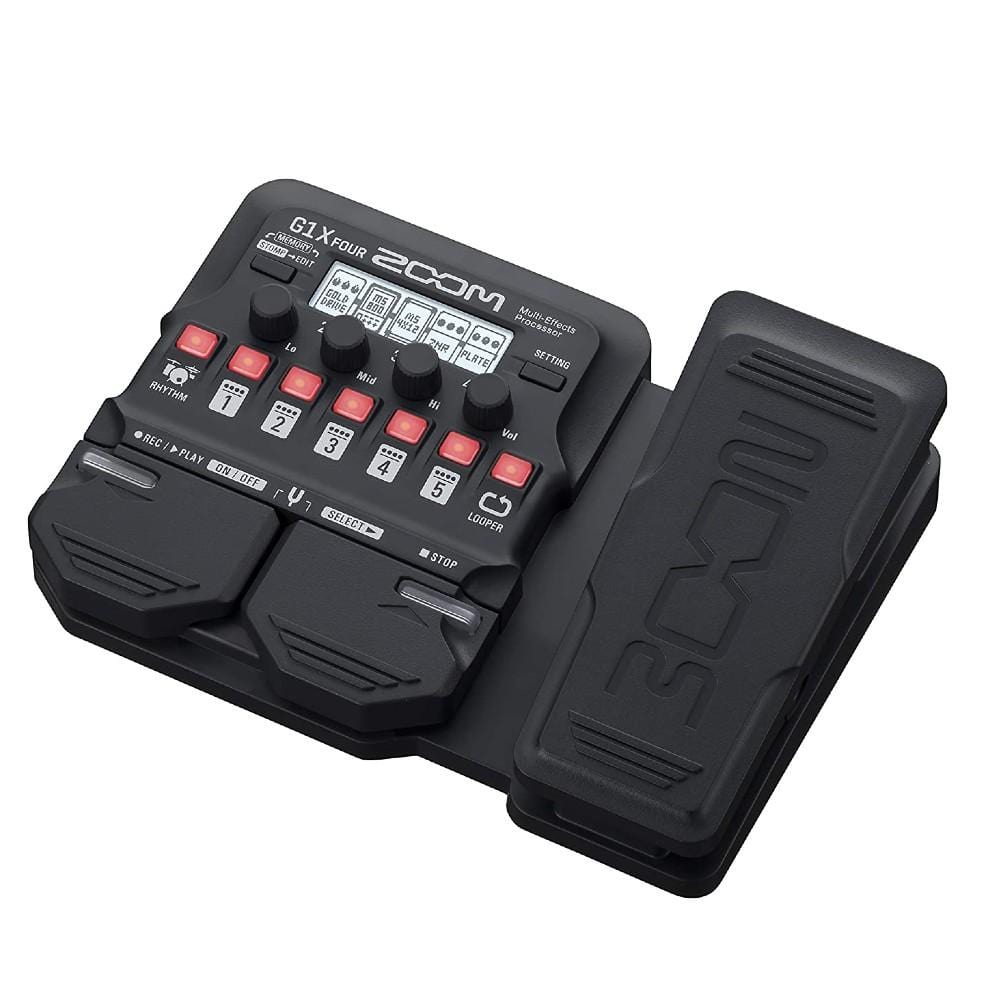

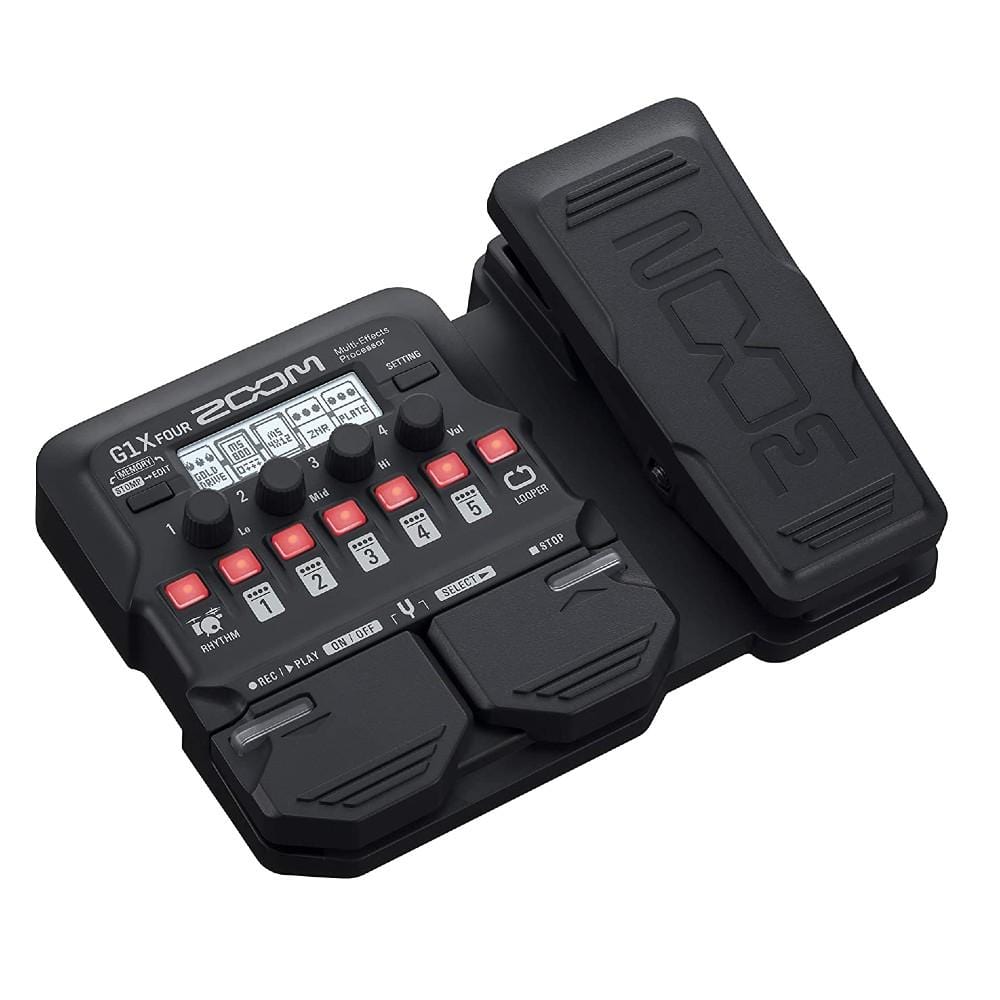

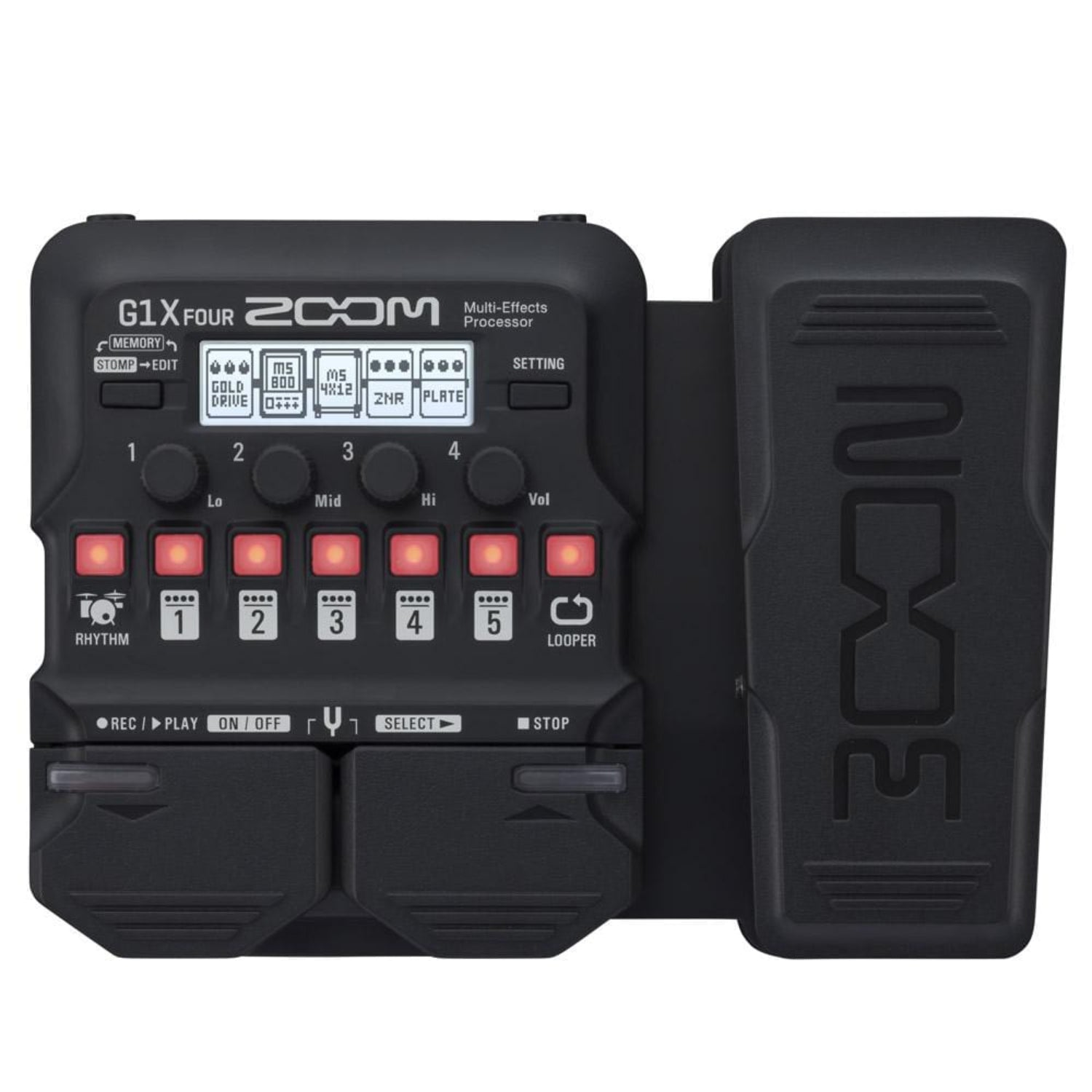

Zoom G1 Four Guitar Multi-Effects Expression Pedal Overview:
Guitar Multi-Effects Pedals
The Zoom G1X FOUR feature over 70 effects and amp models, looper and drum machine. Plus, access ZOOM Guitar Lab’s additional library of downloadable effects. Plug in and be amazed!
X is for Xpression
The G1X FOUR comes with ZOOM’s expression pedal, which provides control over effects such as volume, wah, delay and pitch.
Sounds that Inspire
Both pedals have more than 70 traditional and boutique effects, including ring modulator, pitch-shifting delay and even sitar simulation.
Your Favorite Amps & Cabinets
With 13 classic amps and cabinets like Fender, Marshall, Orange and more*,
the G1 series brings big stage sound wherever you go.
NOTE: Manufacturer names and product names are trademarks of their respective owners. The names are used only to illustrate sonic characteristics and do not indicate any affiliation with ZOOM.
You’ll Love Our Free Guitar Lab Software
With ZOOM Guitar Lab, explore an endless world of patches, effects and more. And with its ability to manage and backup all of your patches, you can experiment and create endless combinations.
Stay Looped In
The built-in looper can record up to 30 seconds of playing, allowing you to create dynamic, multi-part arrangements.
Auto Patch Backup
Your patches and level settings are instantly backed up when using the Auto Save function, ensuring you never lose your latest creation.
Perform Live
Seamlessly switch up your sounds during live shows using either of 2 performance modes.
PRESELECT mode lets you jump from patch to patch without affecting the patch your currently playing.
STOMP mode lets you turn individual effects on and off with the tap of your foot.
Off the Floor
The G1X FOUR’s control panel is also designed for hands-on, desktop use. Dial in tones and adjust level settings with absolute precision to craft your perfect sound.
Power Options
The G1X FOUR runs on just four AA batteries. Alternatively, it can be powered using the optional Zoom AD-16 AC adapter or via USB bus power. (Power Adapter Not Included)
HERE'S WHAT COMES INCLUDED:
- G1 Four or G1X Four Guitar Multi-Effects Processor
- Quick Guide
- Patch List
Features:
- G1X FOUR offers over 70 built-in effects
- 13 amp models for simulating classic rigs
- Up to 5 effects can be used simultaneously, chained together in any order
- Looper for recording up to 30 seconds / 64 beats of CD-quality audio with seamless start and end times
- ZOOM Guitar Lab software for creating, editing and managing effects and patches
- 68 built-in rhythm patterns which can be used in conjunction with the Looper
- 50 memory locations for storing user-created patches
- Auto Save function for automatic saving of all patch parameters
- Onboard chromatic tuner supports all standard guitar tunings, including open and drop tunings

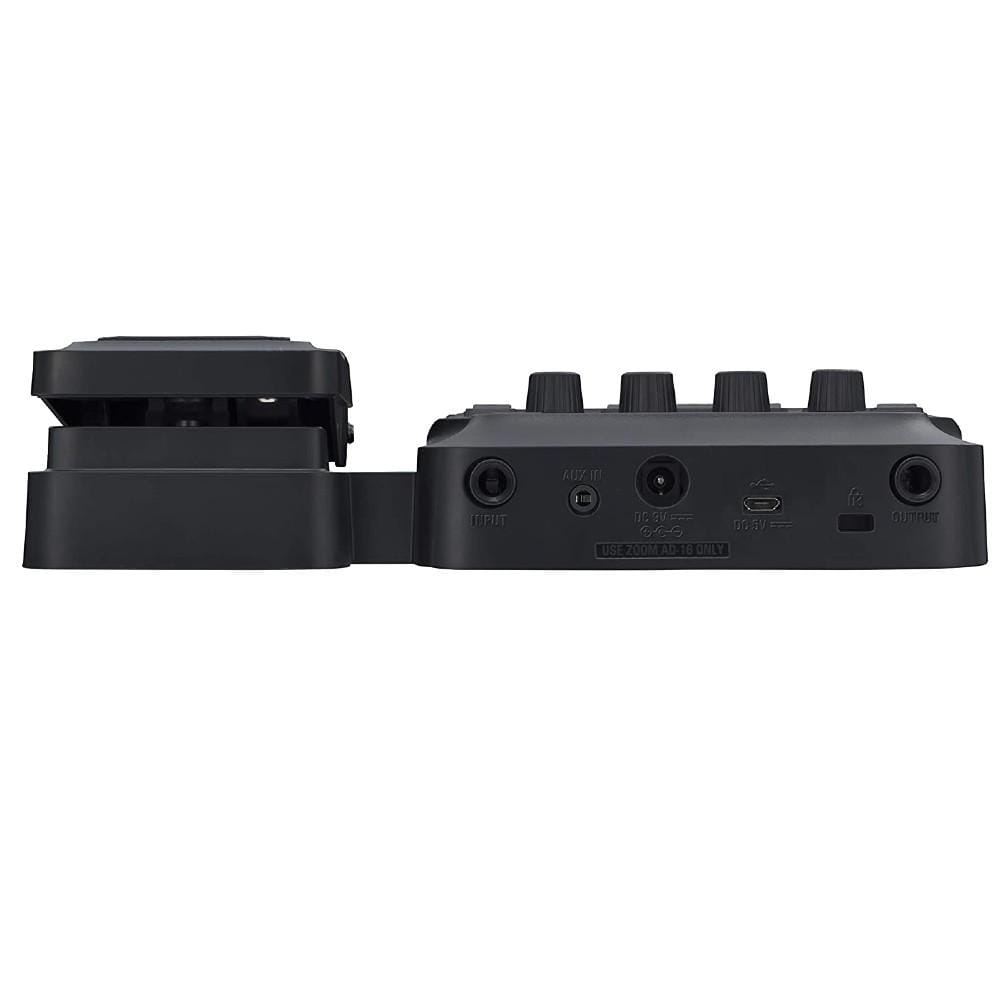

- Input jack accepts standard mono guitar cable (both active and passive instruments supported)
- Auxiliary input jack for connection of personal music players
- Output jack for connection to amp or headphones
- Runs on 4 AA batteries, with alkaline battery life of 18 hours
- USB port for firmware updates, power and connection to ZOOM Guitar Lab
SPECIFICATIONS:
GENERAL SPECIFICATIONS
- MAXIMUM NUMBER OF SIMULTANEOUS EFFECTS 5
- USER PATCHES 50
- SAMPLING FREQUENCY 44.1 kHz
- A/D CONVERSION 24-bit, 128× oversampling
- D/A CONVERSION 24-bit, 128× oversampling
- SIGNAL PROCESSING 32−bit
- DISPLAY 128x32 dot matrix LCD
INPUT
- INPUT Standard mono phone jack | Rated input level: -20 dBu | Input impedance (line): 470 kΩ
- AUX IN Stereo mini jack | Rated input level: -10 dBu | Input impedance (line): 1kΩ
OUTPUT
- OUTPUT Standard stereo phone jack (combined line/headphone) | Maximum output level: Line +2 dBu (10 kΩ or more output impedance) | Headphones 17 mW + 17 mW (32Ω load)
ADDITIONAL SPECIFICATIONS
- INPUT S/N 120 dB
- NOISE FLOOR (RESIDUAL NOISE) -97 dBu
POWER
- 4 AA batteries (about 18 hours continuous operation time when using alkaline batteries with the LCD backlight off)
USB
- Connector: USB2.0 Micro-B
- Guitar Lab | Standard: USB 1.1 Full Speed
- Supported cable: USB2.0 Micro-B cable | Use cables for data transfer. | Power can also be supplied through the USB port. | When using a cable designed only for power, other USB functions cannot be used.
EXTERNAL DIMENSIONS
- G1X FOUR | Height: 156 mm (D) × 216 mm (W) × 52 mm (H) | Weight: 610 g (excluding batteries)
